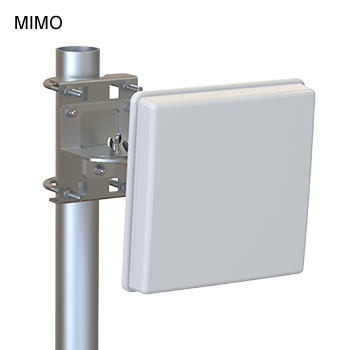

The NH Microwave Yagi Antenna is offered at cost-effective price points for the user who expects exceptional performance and value. It is ideally suited for point to point direction application and long distance transmission.
This Antenna is by default in vertical polarity position and can be adjusted for horizontal polarity position. You can set the yagi up for MIMO application.
Features:
•Strong element construction
•Heavy-duty aluminum or stainless steel boom
•Can be installed for either vertical or horizontal polarization
•RoHs Compliant
|
|
|
|
Electrical Data:
Frequency (MHz):
Gain (Min / Max dBi):
VSWR (Min / Max):

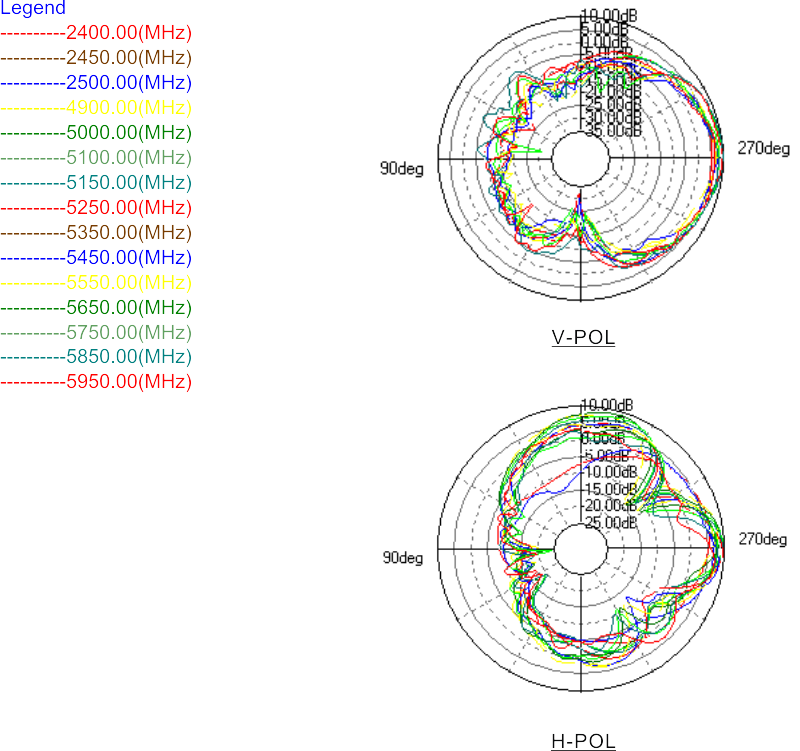

H Beamwidth (Min/Max deg):
V Beamwidth (Min/Max deg):
F/B Ratio (Min / Max dB):
Isolation (Min / Max dB):
Polarization:
Nominal Impedance:
Max Input Power:
Lightning Protection:
|
2400-2500 / 4900-5900
6.2 - 7.1 / 6.5 - 9.6
≤ 2.0
50 - 70 / 22 - 36
61 - 97 / 39 - 64
13 - 17 / 11 - 17
16 - 25 / 15 - 37
4*Vertical
50 Ohms
50 W
DC Ground
|
|
 |
|
|
|
Mechanical Data:

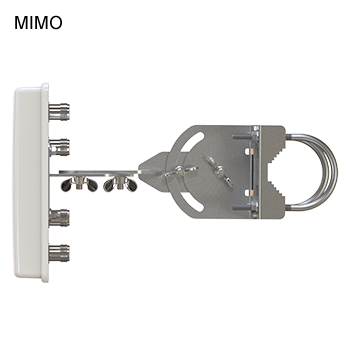

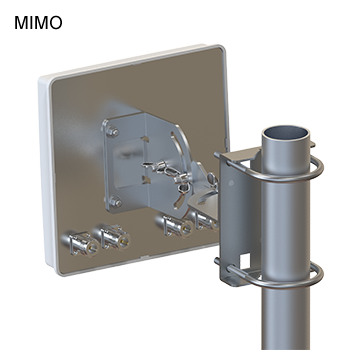

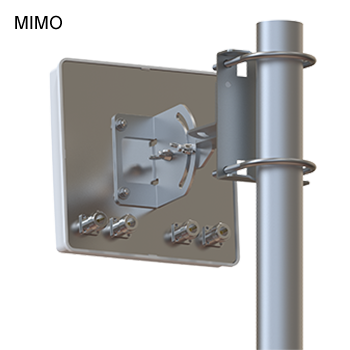

Connector :

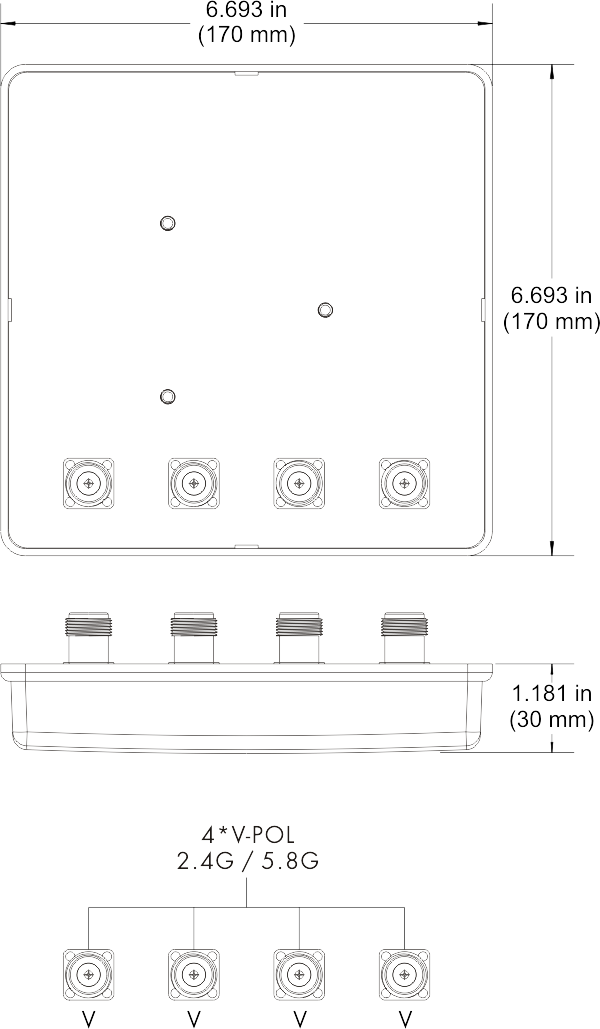

Dimensions:
length*width*height
Weight:
Radome Material:

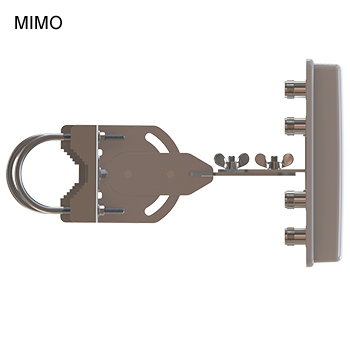

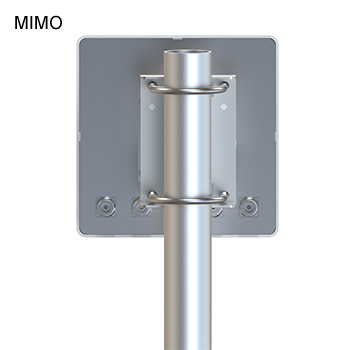

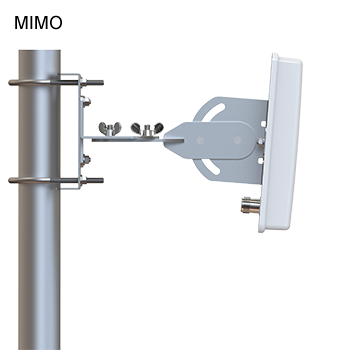

Mounting Method:
Mast Size:
Rated Wind Velocity:
Operating temperature:
|
4*N Female
170*170*30 mm
6.69*6.69*1.18 in
1.12kg/2.47 lb
ASA
Mast Or Wall Mount
Ø30-Ø50 mm
210 km / h
-40~+65 ℃
|
|
 |
