PB627-8-80X-2NCode: 1100049

    • Frequency: 698-960/1710-2170/2300-2700 MHz
    • Gain: 8 dBi
    • VSWR: <2.5:1
    • Polarization: ±45°
    • Horizontal Beamwidth: 80°
    • Vertical Beamwidth: 55°
    • Nominal Impedance: 50 Ohms
    • F/B Ratio: >25 dB
    • Isolation:
    • Max Input Power: 100 W
    • Lightning Protection: DC Ground

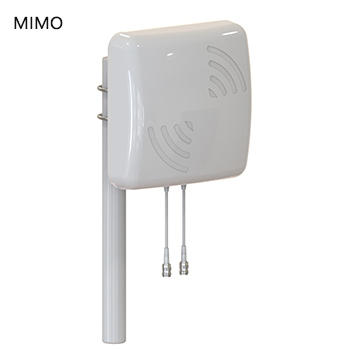

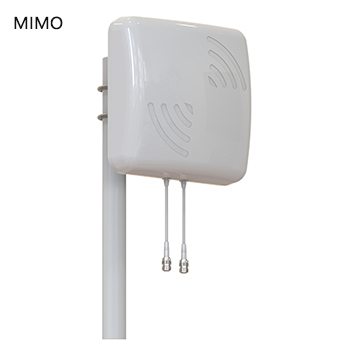

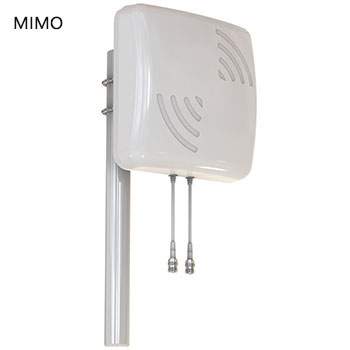

    The NH Microwave MIMO Directional Panel Antenna is ideal suited for a high density small area where focused RF coverage is desired. It is a perfect complement to any enterprise-class MIMO access points (APs) to achieve directional coverage in your indoor and outdoor space.

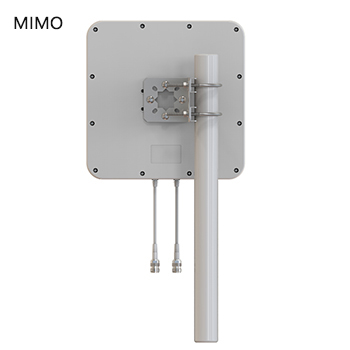

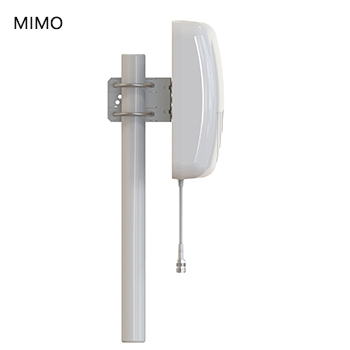

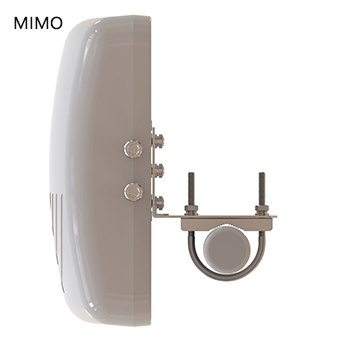

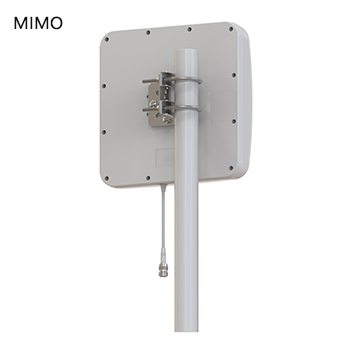

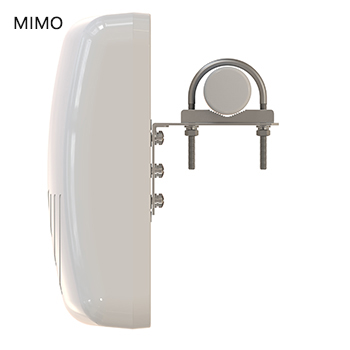

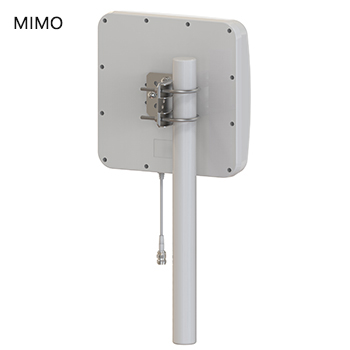

    This antenna is supplied with a tilt-and-swivel pole mounting kit allows it to be positioned for optimal performance.

    Features:
    •Aesthetically pleasing and unobtrusive
    •Durable UV resistant ASA radome
    •Compact size, easy to mount
    •RoHs Compliant

    Mechanical Data:

    Connector :
    Dimensions:
    length*width*height
    Weight:
    Radome Material:
    Mounting Method:
    Mast Size:
    Rated Wind Velocity:
    Operating temperature:

    2*N Female or customized
    265*265*85mm
    10.4*10.4*3.3in
    1.3kg/2.9lb
    Weatherproof ABS
    Mast Or Wall Mount
    Ø30-Ø50mm
    210km/h
    -40~+65℃
