DB220-9-5WCode: 1100073

    • Frequency: 216-226 MHz
    • Gain: 9 dBi
    • VSWR: <1.5:1
    • Polarization: Horizontal or Vertical
    • Horizontal Beamwidth: 60°
    • Vertical Beamwidth: 55°
    • Nominal Impedance: 50 Ohms
    • F/B Ratio: >14 dB
    • Isolation:
    • Max Input Power: 100 W
    • Lightning Protection: DC Ground

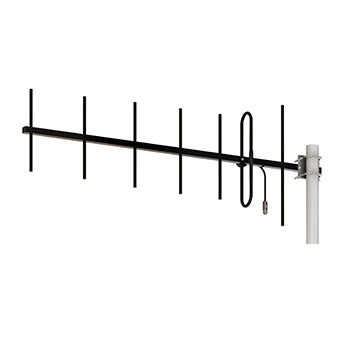

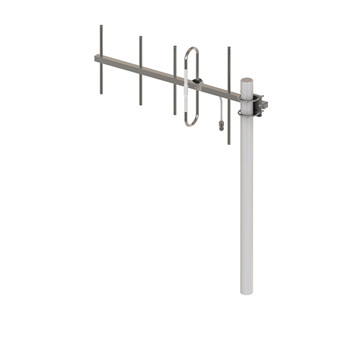

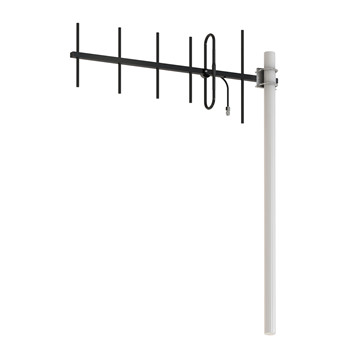

    The NH Microwave Yagi Antenna is offered at cost-effective price points for the user who expects exceptional performance and value. It is ideally suited for point to point direction application and long distance transmission.
    This Antenna is by default in vertical polarity position and can be adjusted for horizontal polarity position. You can set the yagi up for MIMO application.
    •Strong element construction
    •Heavy-duty aluminum or stainless steel boom
    •Can be installed for either vertical or horizontal polarization
    •RoHs Compliant

    Mechanical Data:

     Connector :
      Cable Length:
      Antenna Material:
      Mounting Method:
      Mast Size:
      Rated Wind Velocity:
      Operating temperature:

    N Male
    Stainless Steel
