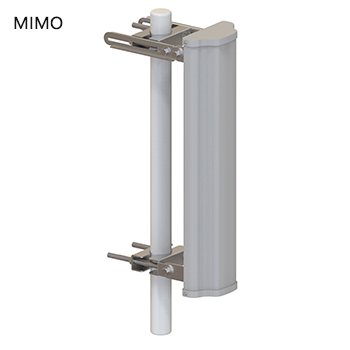

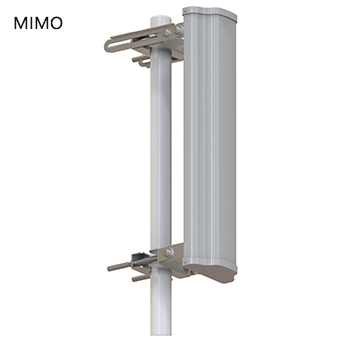

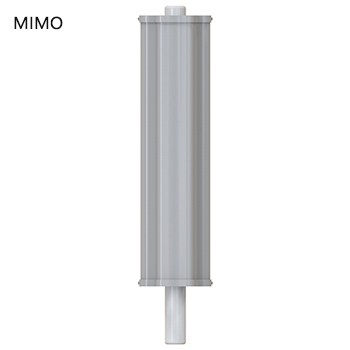

The NH Microwave MIMO Base Station Panel Antenna is a professional quality “cell site” antenna designed primarily for high density user area. It transmits multiple data streams at the same time in a very high speed.

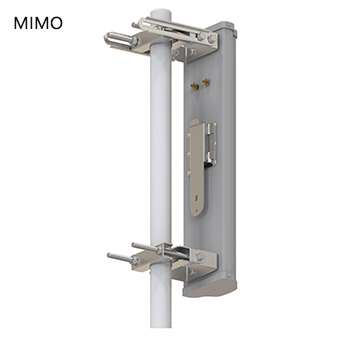

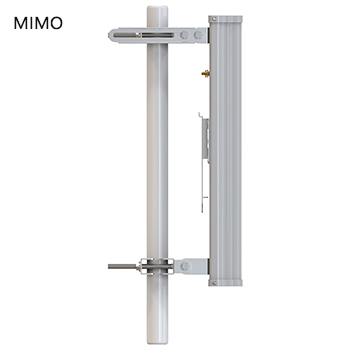

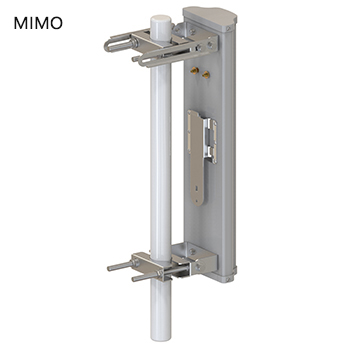

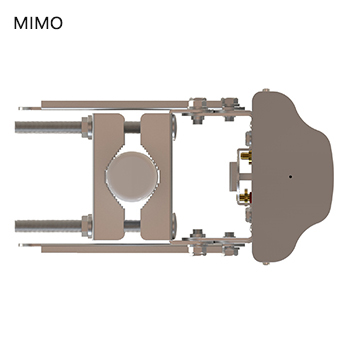

This antenna is built with a durable UV resistant PVC radome for all-weather operation. Its industrial grade mounting system allows installation adjusts from 0~15° down-tilt.
Features:
•Made to cover a large and high density area with clear signal
•Suitable for MIMO applications
•All weather operation
•Easy to setup
•RoHs Compliant
Mechanical Data:
Connector :
Connector position:
Dimensions:
length*width*height
Weight:
Radome Material:
Mounting Method:
Mast Size:
Rated Wind Velocity:
Operating temperature:
|
2*SMA Female
Back
504*135*123 mm
19.8*5.3*4.8 in
2.2kg/4.8lb
UV Resistance PVC
Mast
Ø40-Ø70mm
210km/h
-40~+65℃
|
|
|
WHAT WE DO:
We bring 15 years of R&D expertise to your antenna projects. At the helm of our 12-member R&D team is a designer with four decades of antenna development experience. Under his guidance, we have built 380 models, suitable for GSM / CDMA / 3G / 4G / LTE/ DAS / WLAN / Wi-Fi / WiMAX / VHFTV / UHF TV / RFID applications. Each month, we launch 5new products to stay on top of market trends.We use advanced technical equipment to produce our antennas, including far field testing system and 55m³ microwave anechoic chambers, as well as vector network analyzers, spectrum analyzers and signal generators which all are from HP and Agilent. In order to shorten the R&D time, our engineers use a lot of software, including CST, HFSS, Auto CAD, Pro/ENGINEER, SolidWorks and AWR Design Environment.
